No. 1 Choice in High Precision Parts Turning Lathe!
- Suitable for special purpose machining and small lot flexible machining.
- Compact construction with small floorspace of 2x2 meters only for saving space. Easy to install.
- Available to equip with robot for fully automatic operation.
- Suitable for operating together with whole plant equipment or a production line.
- Chip conveyor can be mounted at right or back side of the machine to suit the working space as desired.
- Ideal for precision parts machining in various industries such as optical deviceds, measuring instruments, automotives and motorcycles, aircrafts, aerospace, electronics and parts.
| MODEL | UNIT | FTC-05 |
| Swing Over Bed | mm | 180 |
| Swing Over Top Slide | mm | 120 |
| Distance Between Center | mm | N/A |
| MAX. Turnable O.D. | mm | 91 |
| MAX.Turnable Length | mm | 91 |
| Angle of the Machine bed | Degree | 0 |
| AC Spindle Motor | AC 3KW/5HP | |
| Max. Spindle Speed | RPM | 6000 /8000(OPT) |
| Spindle nose | ISO | A2-4 |
| Spindle Hole | mm | 35 |
| Through Bar Capacity | mm | 25.4 |
| Spindle Front Bearing I.D. | mm | 55 |
| Chuck Size | inch | 5C (5"chuck) |
| Tailstock Taper | MT | N/A |
| Tailstock Quill Diameter | mm | N/A |
| Tailstock Quill Travel | mm | N/A |
| Tailstock Seat Travel | mm | N/A |
| X-Axis Travel | mm | 200 |
| Z-Axis Travel | mm | 180 |
| X-Axis Rapid Speed | m/min | 12 |
| Z-Axis Rapid Speed | m/min | 12 |
| Min. Input Increment | mm | 0.001 |
| Square Shank Tools Size | mm | 16 |
| Max. Boring Tool Diameter | mm | 20 |
| Numbers of Tool Position | Gang Type | |
| Change Tool Times | sec | N/A |
| Coolant Pump Motor | HP | 1/4 |
| Machine Dimension | mm³ | 1450*1350*1550 |
| Floor Space | mm² | 2000*2000 |
| Packing Dimension | mm³ | 2080*1460*1960 |
| Machine Net Weight | kg | 1500 |
| Machine Gross Weight | kg | 1980 |

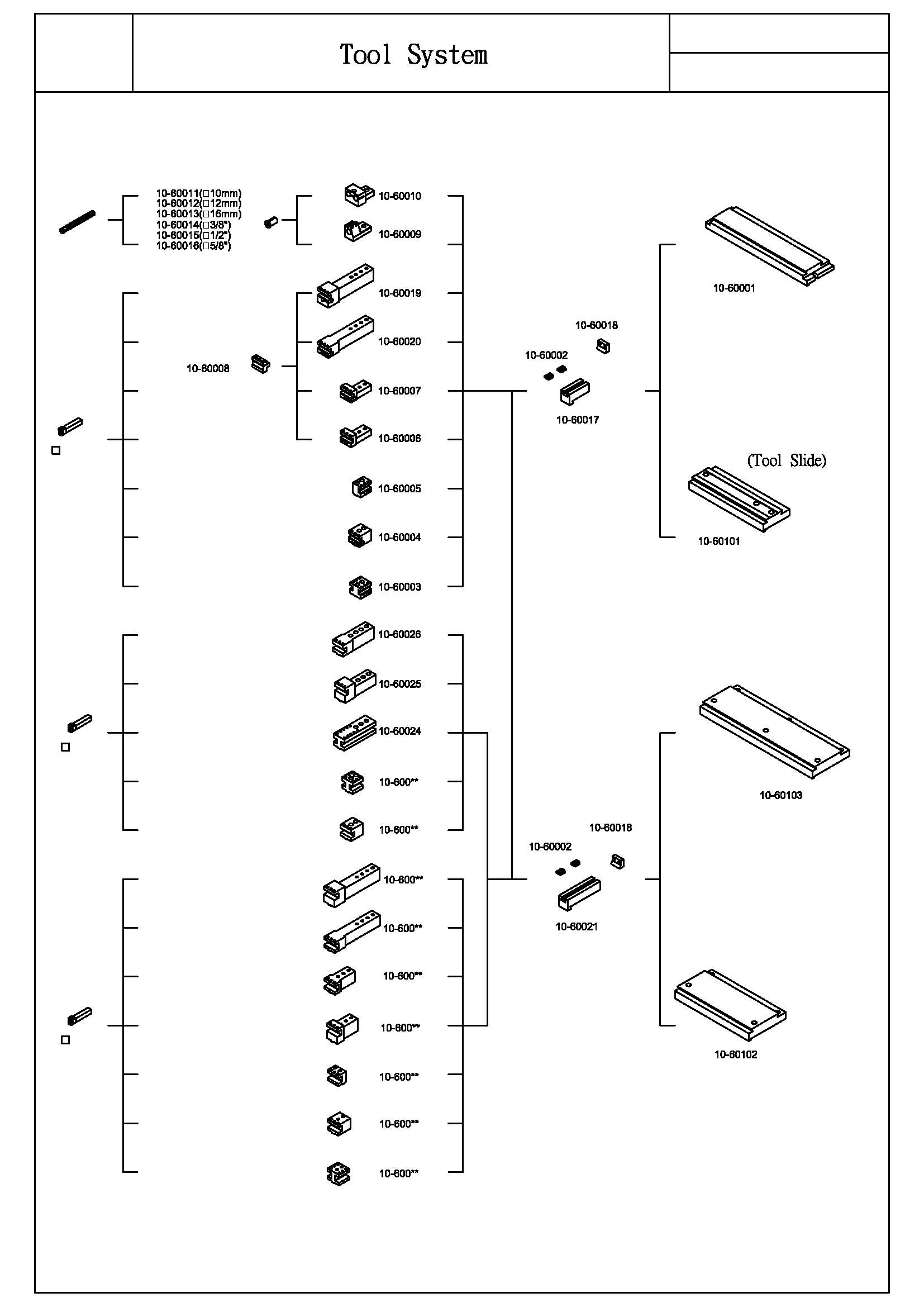

- Tool Holder
- Auxiliary tool slide
- Milling attachment
- I.D. Tool
- I.D. Double Tool
- O.D. Tool
- 8 tools Turret
- 5c Collect Chuck
- I.D. Tool Sleeve
- 5" Hollow Hydraulic Chuck
- 5" Hydraulic Chuck
- Hydraulic Power Tooling System
- Bar Feeder
- Parts Catched (Front side)
- Spindel Air Blast Device (Front side)
- High Speed Air Power Tooling System
- Chip Conveyor with Bucket
- 4" PML air Chuck (in case pneumatic system is ready)
- Work Lamp
- Leveling Bolts and Pads
- Heat Exchanger for Electrical Cabinet
- Coolant System
- Tool Holder 4 pcs
- Tool 4 pcs
- Collet Chuck (5C) 1pc
- Collet (5C) 1 pc
- Tool Box with Tool Kits
- Automatic Lubrication system and Ball Screw Lubrication System
- Gang-type Tooling System (5" hydraulic rotary cylinder and hydraulic power unit)
